Relay AMR

  • Multifunctional Protective Relay
  • Functions
  • Software Features
  • Relay Certificates

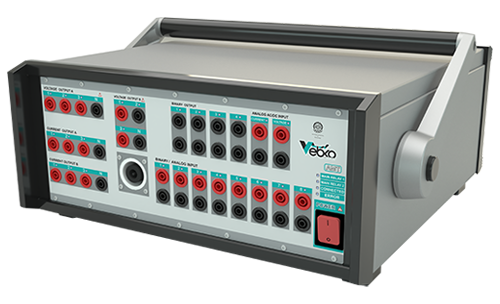

Tester AMT105

  • Software Specifications
  • Capable of Testing Circuit Breakers(CB) and Sectioners
  • Capable of Testing Voltage Transformers and Capacitor Voltage Transformers(VT/CVT)
  • Capable of Testing Voltage Power Transformers
  • Capable of Testing Current Transformers(CT)
  • Capable Of Testing Cable Resistance
  • Capable of Testing RTD
  • Vendor List
  • Tester Certificates

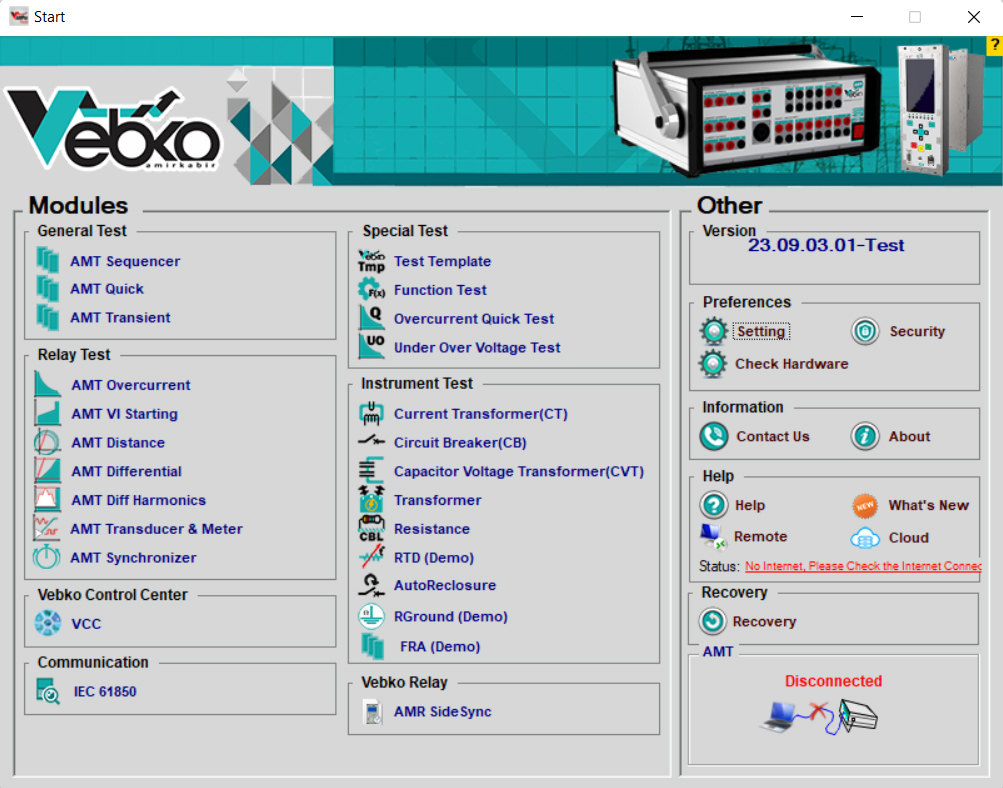

Software Specifications
  • Capable of testing a wide range of electromechanical,static, and numerical relays
  • Capable of reading, editing, and creating all XRio and Rio files
  • Capable of transient testing
  • Capable of point-to-point or end-to-end testing
  • Built-in GPS and Wi-Fi
  • Automatically performing tests
  • Generating comprehensive report on tests
  • Capable of automatically filling out the test sheets of different companies
  • Compatible with Windows XP, 7, 8, 10
  • Supports Android and iOS operating systems
  • Autosave, Redo, and Undo options
  • PDF Help File in English
  • Using Bootloader technology to update Firmware
  • A host of instructional videos
Capable of Testing Circuit Breakers(CB) and Sectioners
  • Timing Test
  • Contact Resistance
  • Minimum Voltage to Operate Circuit Breaker
Capable of Testing transducers and meters
  • Highly precise in testing transducers and meters
  • Equipped with a pulse counter to automatically read energy
Capable of Testing Voltage Transformers and Capacitor Voltage Transformers(VT/CVT)
  • Secondary Burden
  • Short-Circuit Impedance
  • Resistance
  • Excitation
  • Ratio
Capable of Testing Current Transformers(CT)
  • Excitation (Saturation)
  • Hysteresis curve
  • Ratio using current or voltage
  • Polarity using current or voltage
  • Phase error
  • Winding resistance
  • Secondary burden
Capable of Testing RTD
Capable of Testing Voltage Power Transformers
  • Winding resistance
  • Ratio (TTR)
  • No-Load Current
  • Vector group
  • Magnetic balance
  • Tap changer continuity
  • Demagnetizing
Tester Certificates
  • CE Certificate
  • ISO 17025:2005
Vendor List
  • Petroleum Ministry of Iran
  • National Petrochemical Company
  • Khorasan Steel Complex Co.
  • Marun Petrochemical Co.
  • Khouzenstan Oxin Steel Co.
  • Bandar Abbas Oil Refining Co.
  • Hormozgan Steel Co.
  • Niroo Research Institute
  • Khorasan Petrochemical Co.
  • Iran National Iranian Copper Industries Company
  • Pasargad Oil Company
  • Qom Combined Cycle Power Plant
  • Khozestan Steel Co.
  • Pars Oil and Gas Co.
  • Zarand Iranian Steel Co.
  • Esfahan Steel Co.

Relay AMR

Functions
  • Definite time-overcurrent protection (phase/neutral)
  • Inverse time-overcurrent protection (phase/neutral), phase function with voltage-dependent option
  • Directional time-overcurrent protection (definite/invers, phase/neutral)
  • Directional comparison protection
  • Directional/non-directional sensitive earth-fault detection (Completing)
  • Cold load pick-up (dynamic setting change)
  • Intermittent earth fault
  • Breaker failure protection
  • Auto-reclosure (Completing)
  • Synchro-check (Completing)
  • Phase-balance current protection (negative sequence protection)
  • Thermal overload protection

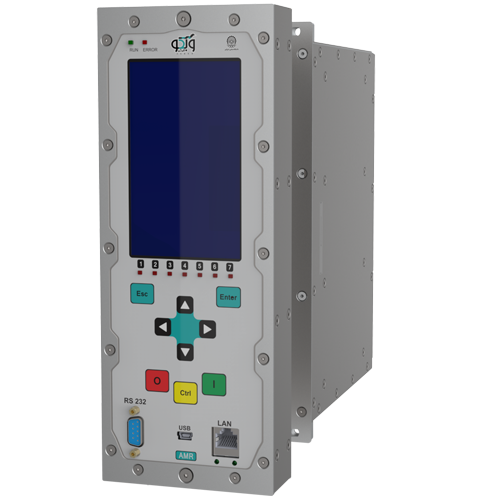

AMR-M Multifunctional Protective Relay
  • The desired number of current and voltage inputs
  • The desired number of digital inputs and outputs
  • A large touch screen display
  • LAN, RS232 and RS485 Ports, internal Wi-Fi and GPS
  • Supports different communication protocols: IEC 61850،IEC 60870، MODBUS
  • Connecting to a computer, a tablet or a smart phone via WiFi
  • Capable of using 1A and 5A CTs
  • On-The-Go USB port to use a flash drive for transferring data from/to relay along with the ability of connecting a mouse and a keyboard to the front panel
Relay Certificates
  • Tavanir
Software Features
  • Powerful and user-friendly software environment for setting different functions
  • PFD " logical environment (Programming Function Diagram)"
  • Capability of recording up to 500 oscillographs, trip log
  • 4 setting groups
  • SIGNAL ROUTING software module to assign function signals to the digital inputs and outputs, LEDs, Trip Log, Event log, Comtrade, and etc
  • Exporting relay settings as Xrio and Xls format
